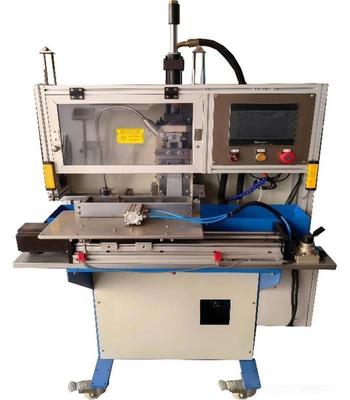

NB-320 Semi-automatic Catalogue Corner Cutting Machine

Performance and Features:

Addressing the high operational hazards of older catalogue-cutting machines, where brake and clutch wear leads to inaccurate positioning, and each product requiring bespoke scaffolding, coupled with non-interchangeable catalogue-cutting and nail-fastening mechanisms, our company has exclusively developed a semi-automatic catalogue-cutting machine featuring the following characteristics:

1. Hydraulically controlled cutting blade delivers rapid operation, achieving 100 up-and-down strokes per minute; Operates stably and reliably, eliminating positioning inaccuracies;

2. The platform moves forward and backward. After each cut, the platform retracts to turn the book. The cutting blade position is equipped with a safety light curtain, ensuring operational safety;

3. Equipped with a PLC touchscreen interface, product parameters are input via programming. The platform automatically reposition after each cut according to preset dimensions, eliminating ladder replacement;

4. Features interchangeable table tops enabling dual functionality—suitable for both catalogue cutting and nail clip trimming, offering economical practicality.

III. Principal Technical Specifications

(1) Effective cutting length: 320mm

(2) Maximum paper thickness: 1.2mm

(3) Cutting speed: 0-20 cuts/min

(4) Motor power: 1500W / 220V 50Hz

(5) Gross weight: 300 kg

(6) External dimensions: 940 × 940 × 1480 mm

(7) Packaging dimensions: 990 × 990 × 1640 mm

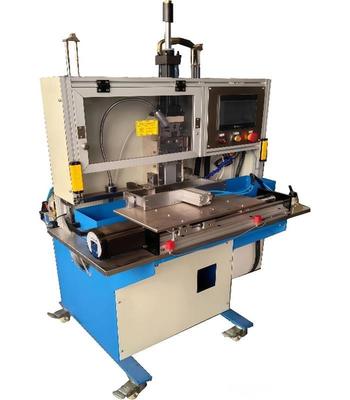

NB-320 Semi-automatic Catalogue Corner Cutting Machine

About US

Our factory mainly produce two party of after printing products:

1:After-printing book equipment:double loop wire forming machine,double loop wire binding machine,semi-automatic punching machine, automatic punching machine,double loop wire binding &paper punching machine,Single loop forming spiral&binding machine,plastic spiral coil forming machine,plastic spiral coil binding machine,calendar hanger forming machine,book sewing machine,book folding machine. Mylar Tab Lamination Machine,Glue Perfect Binding Machine

2:Binding material: plastic spiral coil,double loop wire,nylon coated wire,Metal Spiral Coil .PVC filament, PVC Binding Cover,Calendar Hanger,Plastic Binding Comb

Our company advantages: we can supply after printing all kinds of full binding system:

1: first choose binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture

double loop wire,after you bought double wire binding machine from us,if you also buy double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.

2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil

and binding notebook at the same time

3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.

Regards to our service:After you bought machine from us,if machine has any problem we can help you to solve it. after

you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small

problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send master to your company help you to solve.Warmly welcome you call us

PS: We have many different kinds of machines, they are widely used for paper notebook binding, if you have any requrement please kindly email at tina@nanbobinding.com or wechat or whatsapp 008613431348359
